Product Name：RVK Chip/SMD Aluminum Electrolytic Capacitor
Series：RVK
Operating Temperature Range°C：-55~+105°C
Working Voltage Range：6.3V~50Vdc
Capacitance Range：1uF~220uF
Load life：2000Hours
RVK Low Leakage Chip/SMD / SMT Aluminum Electrolytic Capacitor
• Reflow soldering available for reflow soldering
• Low Leakage type
• Available for high density surface soldering
• Life time:105°C 2000Hours
• Adapted to the ROHS / REACH directive

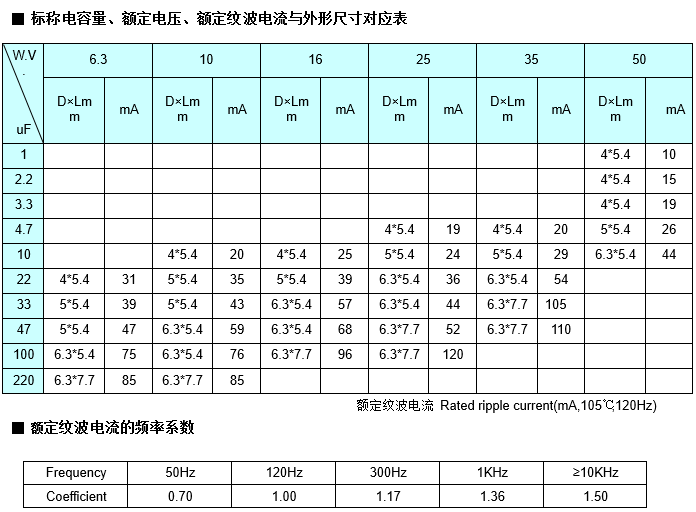

Related Voltage: 6.3V, 10V, 16V, 25V, 35V, 50V.
Related Capacitance: 1uF,2.2uF,3.3uF,4.7uF, 10uF,22uF,33uF,47uF,100uF, 220uF.
RVK Low Leakage Chip/SMD / SMT Aluminum Electrolytic Capacitor
